Second to spheres, boxes are the second faster primitive shape in a typical ray tracer. The intersection routine for a ray and a sphere involves taking a square root. Intersection with boxes do not require any non algebraic operations, but they have a lot of jumps, and jumps in code are expensive.

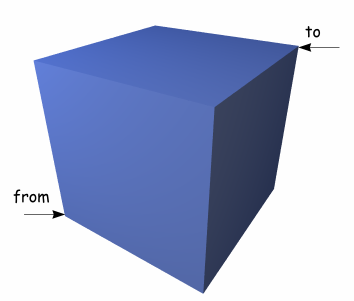

When specifying a box shape, you must provide a pair of points of one diagonal:

- Box(From, To, Material)

In this variant, there's no need to group coordinates between brackets:

- Box(X0, Y0, Z0, X1, Y1, Z1, Material)

Primitive boxes are always aligned to the axis. If you need another orientation, you must use the rotate primitive with the box. You can also apply a scale operation to the rotated box. Note, however, it doesn't make sense to scale a non-rotated box, since the same effect could be achieved with the **box** primitive.
