Shapes: CSG operations

XSight RT includes full support for Constructive Solid Geometry (CSG) operations: unions, intersections and differences. A future version will include support for merges, a union variant that eliminates internal surfaces from a union.

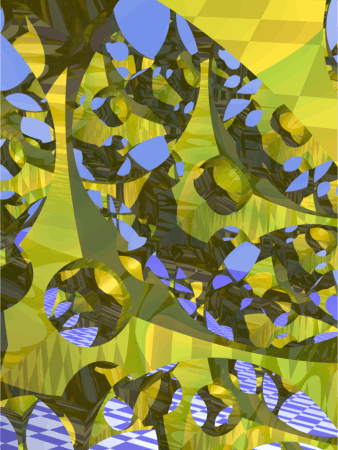

CSG operations are an indispensable resource for creating complex shapes from the simple basic solids provided by XSight RT, as in this image:
